IEI Launches the New 19” fanless industrial Panel PC PPC-F19B-BT
 Features |
| |
|
 |
Intel® Celeron® J1900 quad-core SoC |
|
Dual full-size PCIe Mini card expansion |
|
9V~36V DC wide range DC input |
|
Robust IP65 aluminum front bezel |
 |
|
|

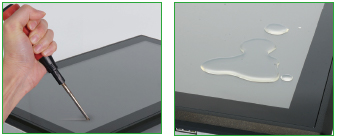

| Impeccable Front Panel |
| |
|
 |
| 6H Anti-scratch Touch |
| The PPC-F series equipped with projected capacitive touchscreen uses 6H hardness vandal proof strengthened glass to prevent damages from physical impact. |
| Front Bezel IP65 Protection |
| Designed for harsh environments, the PPC-F series provides front bezel IP65 protection to resist dust and water jet. |
|
|
|
| Aesthetic ultra-thin bezel for seamless panel mount installation |
| |
|
 |

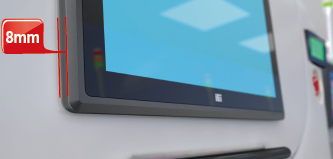

| 8mm Ultra Thin Bezel Design |
| To enhance aesthetic experience in industrial automation applications, the depth of the front bezel of the PPC-F is only 8mm to minimize the gap between the wall and the system in wall/panel mounting, which is neat and simple during integration. |
|
|
|
| Projected capacitive multi-touch and resistive single touch options |
| |
|
 |
| 2-Point Multi Touch |
| The PPC series supports 2-point projected capacitive touch, enhancing smooth operations! IEI also provides 12” to 24” resistive single type and projected capacitive type touchscreen options to enrich simple and intuitive user experience. |
|
|
|

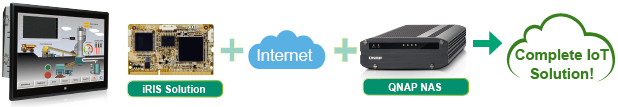

| Support IEI iRIS-2400 remote intelligent solution |
| |
|
 |
| IEI Remote Intelligent Management System |
| The PPC-F supports iEi iRIS remote management, which helps users to manage multiple devices through single management interface and elevates work efficiency. iRIS solution only requires a module and Internet connection! |
|
 |
|
|
| Specifications |
| |
|
| Model Name |
PPC-F19B-BT |
| LCD |
LCD Display |
19” (5:4) |
| Max Resolution |
1280 (W) x 1024 (H) |
| Brightness (cd/m²) |
350 |
| Contrast Ratio |
1000 : 1 |
| LCD Color |
16.7M |
| Pixel Pitch (mm) |
0.294 x 0.294 |
| Viewing Angle (H-V) |
170° / 160° |
| Backlight MTBF (Hrs) |
50000 |
| Motherboard |
CPU |
Intel® Celeron® processor J1900 (2M cache, up to 2.42 GHz) |
| RAM |
2 x 204-pin DDR3L SO-DIMM slot (max. 8GB), pre-installed with 2GB |
| Touch |
Touchscreen |
5-wire resistive type single touch window (Penmount 9000), 3H
2-point projected capacitive touch window (EETI EXC7200), 6H |
| Input Interfaces |
I/O Ports & Switches |
2 x RJ-45 LAN port
2 x USB 3.0
2 x USB 2.0
1 x HDMI
2 x RS-232
1 x RS-232/422/485
1 x VGA
1 x 9 V~36 V DC jack (4-pin)
1 x 9 V~36 V DC terminal block
1 x Line-out (PPC-F15B & PPC-F17B & PPC-F19B only)
1 x Power switch |
| Expansion |
1 x Full-size PCIe Mini slot ( mSATA/PCIe/USB signal)
1 x Full-size/half-size PCIe Mini slot (PCIe/USB signal) |
| Wireless LAN |
802.11 b/g/n (optional) |
| Drive Bay |
1 x 2.5” HDD/SSD drive bay |
| iRIS Remote Management Solution |
iRIS-2400, QTS-Gateway |
| Physical |
Construction Material |
Aluminum front panel and sheet metal rear cover |
| Mounting |
Panel mount, rack mount, VESA 100x100 |
| Enclosure Color |
Black C |
| Dimension (mm) |
372.4 x 447.4 x 52.87 |
| Weight (Net) |
6.5 kg |
| Cutout Dimensions (mm) |
355 x 430 |
| Environment |
Operating Temperature
(with air flow) |
-10°C~50°C (14°F~122°F) |
| Storage Temperature |
-20°C~60°C (-4°F~140°F) |
| Humidity |
10% to 95% (non-condensing) |
| IP Level |
IP 65 compliant front panel |
| Safety and EMC |
CE & FCC Class A certified |
| Power |
Power Adapter |
P/N: 63040-010060-110-RS
60W Power Adapter
Input: 90 - 264V AC, 50/60Hz
Output: 12V DC |
| Power Requirement |
9 V~36 V DC |
| Power Consumption |
33W |
|
|
| Fully Integrated I/O |
| |
|
|
|
|

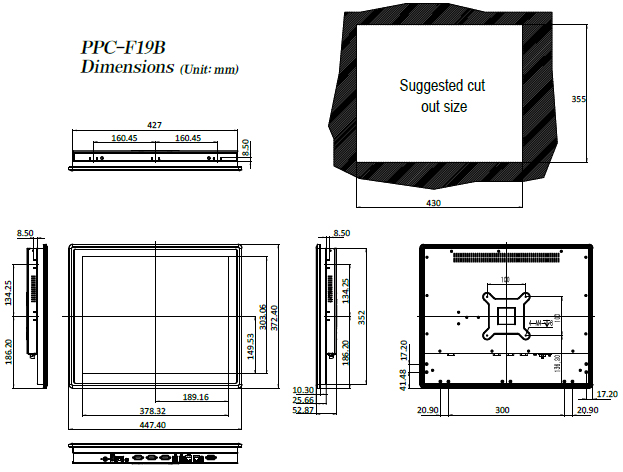

| Dimensions |
| |
|
 |
